Atomic V-Anchor Plate 500mm – AAV050

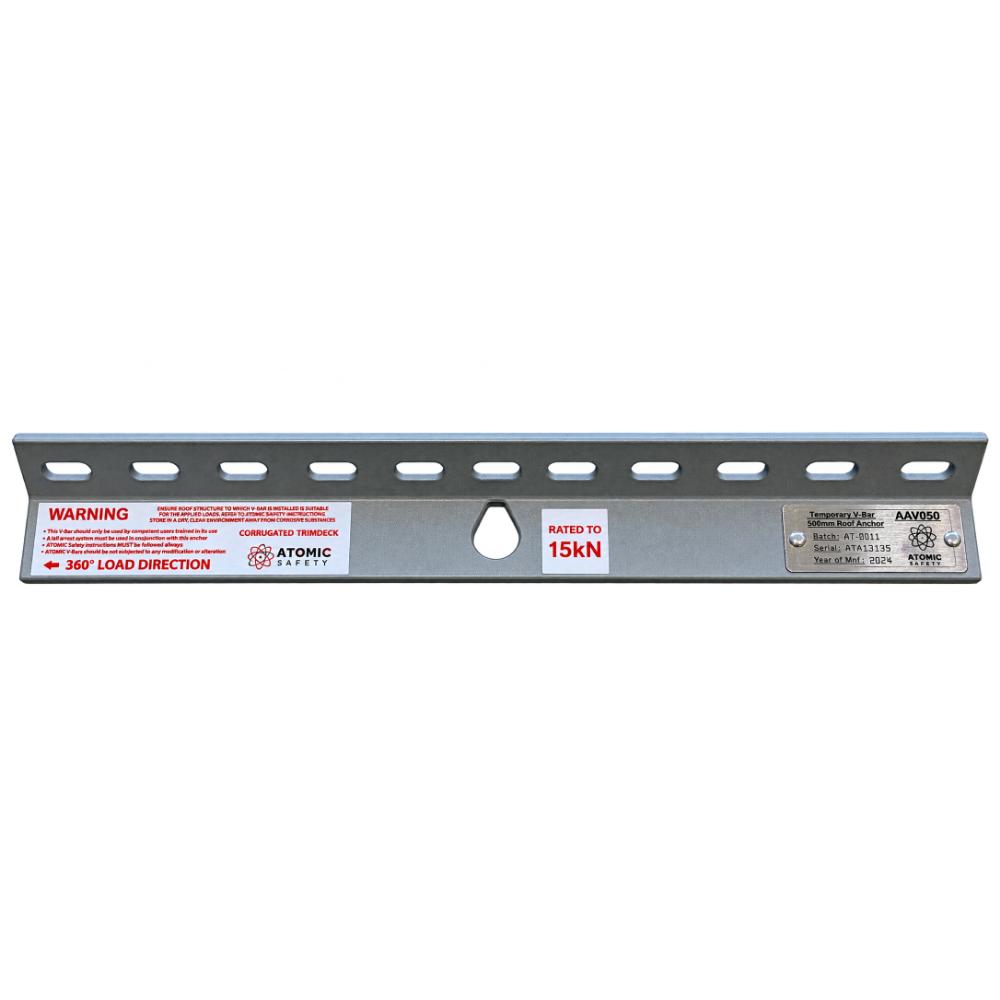

The ATOMICÂ Safety V-Anchor Plate is a temporary roof anchorage point designed for trained height-safety users. Rated to 15 kN, it is suitable for a single-person travel restraint or fall arrest system when correctly installed on an appropriate metal roof structure.
The ATOMIC Safety V-Anchor Plate is available in 500 mm sizes, the plate features a keyhole attachment point for connection to compatible personal fall-protection equipment. An external compliant energy absorber must be used, as the plate does not contain an internal energy-absorbing device.
- Temporary roof anchor for trained and competent height-safety users
- Keyhole attachment point for a compatible karabiner
- Suitable for 360-degree work on flat metal roofs
- Designed for single-person travel restraint or fall arrest
- Removable and reusable, subject to inspection requirements
- Must be used with a compliant external energy absorber
- Not suitable for abseiling, lifting equipment or multi-person connection
- Anchor rating: 15 kN
- User capacity: One person
- Roof compatibility: Trimdek or corrugated metal roof sheeting
- Minimum roof-sheet base metal thickness: 0.43 mm
- Minimum fasteners: Three suitable heavy-duty roof screws
- Recommended fasteners: Five suitable heavy-duty roof screws
- Minimum fastener penetration: 35 mm
- Inspection: Before each use and every 12 months by a competent person
- Maximum service life: 5 years
- Applicable standard: AS/NZS 1891.4
